July 2026
Special Focus—Catalysts
Partner Content: A step-change in methanol synthesis performance
Clariant Catalysts has been a trusted pioneer in methanol synthesis catalysts since the 1970s, with > 50 yrs of continuous innovation and expertise in the field—a legacy that today powers > 30 MMtpy of produced methanol with MegaMax catalysts (FIG. 1) across all major plant designs around the globe. Building on this heritage, MegaMax™ 800 represents a significant advancement in mega-methanol production, delivering exceptional performance at world-scale plants.

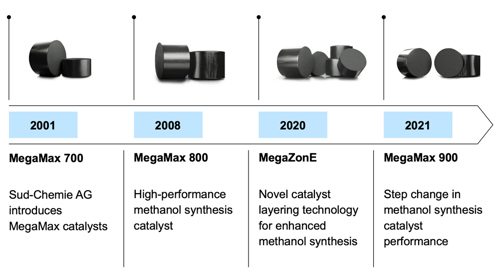

FIG. 1. The evolution of MegaMax™ catalysts.
As the world strives to transition toward green methanol as a key enabler of carbon-neutral shipping, sustainable aviation fuels (SAFs), clean energy systems and chemicals, the pressure on methanol producers to maximize yield, reduce energy consumption and lower their carbon footprint has never been greater.
Today's methanol plants demand more from every catalyst load—higher output, longer lifetime and a clear path toward more sustainable operations, whether based on conventional or renewable feedstocks. That is precisely why Clariant has introduced MegaMax™ 900, the latest and most advanced generation of its methanol synthesis catalyst family, built upon the proven MegaMax™ 800 platform.
With an optimized formulation and an innovative new production technique, MegaMax™ 900 delivers a superior microstructure with increased physical robustness and significantly more active sites (FIG. 2).

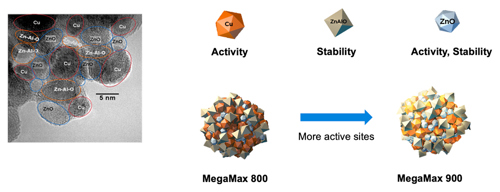

FIG. 2. MegaMax 900 delivers a superior microstructure with increased physical robustness and significantly more active sites.
The result is a catalyst that drives higher activity, longer lifetime productivity, less energy consumption and a measurably lower carbon dioxide (CO₂) footprint—a true step change for your methanol plant, today and into a sustainable future.
THE BENEFITS OF MEGAMAX™ 900
MegaMax™ 900 (FIG. 3) is engineered to address the core needs of modern methanol plants: high activity, high stability, high selectivity and strong poison resistance—all in one catalyst.

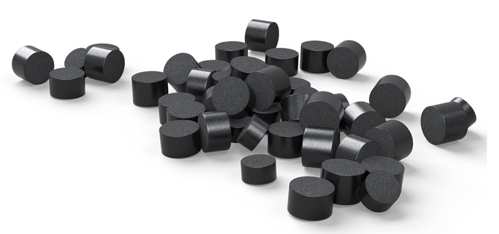

FIG. 3. View of the MegaMax™ 900 catalyst.
Superior intrinsic activity. MegaMax™ 900 outperforms the previous generation across the entire temperature range, delivering up to 18% higher relative activity (FIG. 4), enabling methanol producers to significantly boost output from their existing reactor infrastructure.

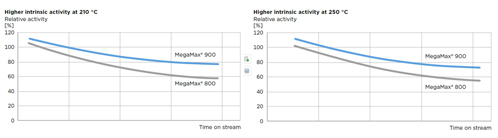

FIG. 4. MegaMax™ 900 outperforms the previous generation across the entire temperature range.
Operation at lower temperatures and reduced loop pressures. Thanks to its superior intrinsic activity, MegaMax™ 900 achieves high conversion rates even at lower operating temperatures and reduced loop pressures. This directly translates into lower energy consumption and reduced operational costs for plant operators.
Increased methanol yield and lifetime productivity. Pilot plant life tests conducted over 1,200 hrs under various feed and stress conditions confirm that MegaMax™ 900 delivers up to 11% yield increase under applied conditions (FIG. 5), with significantly less deactivation compared to MegaMax™ 800, resulting in a longer catalyst lifetime and higher cumulative production.

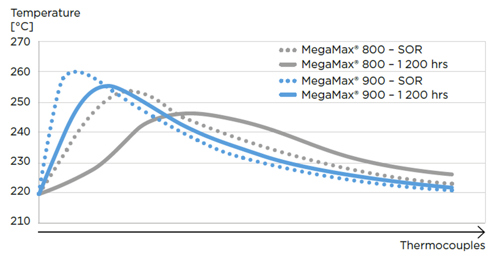

FIG. 5. Pilot plant life tests conducted over 1,200 hrs confirm that MegaMax™ 900 delivers up to 11% yield increase under applied conditions vs. MegaMax™ 800.
FIG. 5. Pilot plant life tests conducted over 1,200 hrs confirm that MegaMax™ 900 delivers up to 11% yield increase under applied conditions vs. MegaMax™ 800.
High selectivity: More methanol, fewer byproducts. The optimized metal dispersion of the MegaMax™ 900 formulation ensures low byproduct formation (FIG. 6). Despite the significantly higher methanol yield, absolute byproduct formation remains comparable to MegaMax™ 800, proving its overall higher selectivity.

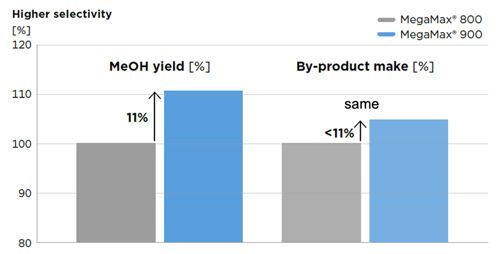

FIG. 6. Despite the significantly higher methanol yield, absolute byproduct formation from MegaMax™ 900 remains comparable to MegaMax™ 800.
High poison resistance. MegaMax™ 900's high copper surface area delivers exceptional poison resistance, ensuring stable and efficient production for several years on stream, even under challenging feedstock conditions.
Smaller CO₂ footprint. By enabling operation at lower temperatures and pressures, MegaMax™ 900 helps methanol plants reduce their carbon emissions, supporting plant operators on their journey toward more sustainable methanol production.
Significant monetary benefits. All the above performance advantages combine to deliver substantial monetary value through increased methanol production, lower energy costs, extended catalyst life and reduced maintenance requirements.
Proven in practice: MegaMax™ 900 at a world-scale methanol plant in the Americas. The performance promise of MegaMax™ 900 is not just backed by laboratory data; it has been proven in real-world operation. A world-scale methanol production facility in the Americas became the first commercial reference for MegaMax™ 900 in the region, and the results speak for themselves after > 2 yrs of stable, successful operation.
Following the catalyst charge, Clariant's Applied Catalyst Technology (ACT) team applied its proprietary loading technique, enabling an optimized recycle-ratio without any additional plant modifications. The impact was immediate and significant:
- > 300-tpd increase in methanol yield
- > 5% improvement in carbon efficiency
- 20% reduction in pressure drop across the water-cooled reactor.
All these gains were achieved within the plant's existing infrastructure—a testament to the step-change activity and superior microstructure of MegaMax™ 900. This case study clearly demonstrates that methanol producers can unlock substantial production and efficiency gains simply by upgrading to MegaMax™ 900, supported by Clariant's world-class technical service expertise
MegaMax™ 900: Powering the green methanol revolution. As the world accelerates its shift toward sustainable energy and low-carbon chemical production, green methanol is emerging as a key enabler of the energy transition, serving as a renewable fuel, a hydrogen (H2) carrier and a sustainable feedstock for the chemical industry. MegaMax™ 900 is uniquely positioned to meet the specific demands of green methanol synthesis, whether based on Power-to-X, biomass or CO₂ feedstocks.
Green methanol processes differ significantly from conventional natural gas-based methanol production. They operate under more challenging conditions, including highly CO₂-rich or fluctuating feed compositions, lower reactor temperatures and pressures, and greater variability in feedstock quality. MegaMax™ 900 addresses all these challenges head-on, offering outstanding activity even at very low reactor temperatures and pressures, superior stability under fluctuating conditions, excellent CO₂-to-methanol conversion and high selectivity that minimizes byproduct formation, greatly improving the sustainability and economics of green methanol synthesis.
Kasso, Denmark: European Energy's eMethanol plant. One of the most landmark green methanol projects in the world is already running on MegaMax™ 900. Located in Kasso, Denmark, European Energy's eMethanol plant (FIG. 7) is one of the world's first and, to date, largest commercial Power-to-X facilities, producing up to 42,000 tpy of green methanol using biogenic CO₂ and green H2. Following a successful startup in early 2025, Clariant's ACT team provided full onsite support, overseeing catalyst loading, reduction and startup. MegaMax™ 900 has since been operating with excellent activity and stability, even under the challenging conditions of direct CO₂-to-methanol conversion and the fluctuating delivery of renewable power.

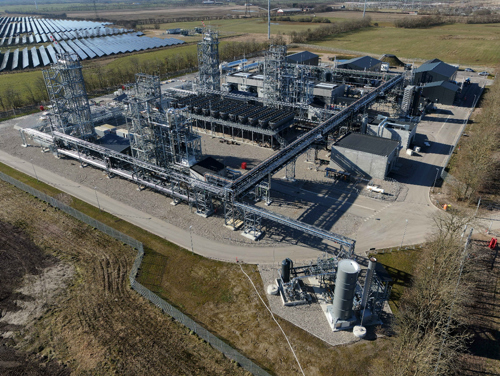

FIG. 7. European Energy's eMethanol plant in Kasso, Denmark.
Taonan, China: Shanghai Electric's biomass-to-green methanol plant. In China, Clariant's strategic alliance with Shanghai Electric is writing another green methanol milestone. The Taonan plant in Jilin province represents China's first biomass-to-green methanol project (FIG. 8), using agricultural waste and green H2 from wind turbines as feedstocks.

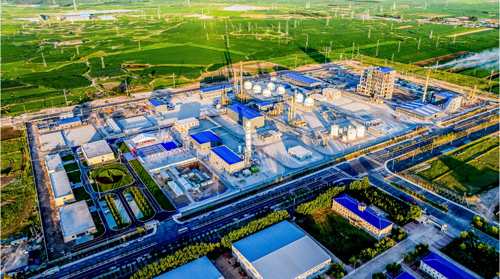

FIG. 8. Shanghai Electric’s biomass-to-green methanol plant in Taonan, China.
The first phase, with a capacity of 50,000 tpy of green methanol, commenced successfully in July 2025. A second phase, targeting 200,000 tpy of green methanol and an additional 10,000 tpy of SAF, is expected to come onstream in 2027—further cementing MegaMax™ 900's role as the catalyst of choice for the green energy transition.
Together, these two groundbreaking projects demonstrate that MegaMax™ 900 is not only a leading solution for conventional methanol plant optimization; it is equally a catalyst of the future for green and sustainable methanol production worldwide.
Beyond the catalyst: Clariant's comprehensive technical service for methanol synthesis. Supplying the world's most advanced methanol synthesis catalyst is only part of what Clariant delivers. Behind every MegaMax™ charge stands a team of highly qualified engineers and experts—Clariant's ACT team—ready to support customers from initial plant design through to long-term performance optimization.
MegaZonE™: Proprietary catalyst layering technology. A cornerstone of Clariant's reactor layout expertise is MegaZonE™, a proprietary catalyst layering technology developed in collaboration with Air Liquide Engineering & Construction. This innovative approach uses multiple layers of MegaMax catalysts with different activity levels, strategically placed to optimize heat management across the reactor. Moderately active catalysts are loaded in hotter zones to prevent hotspots and minimize thermal stress, while highly active catalysts are positioned in the lower reactor section to intensify reaction rates. The result: catalyst lifetime extended by up to 2 yrs, cumulative methanol production increased by up to 15% and byproduct formation reduced by up to 30%—potentially generating monetary benefits of several million U.S. dollars per plant.
CLARITY™: The digital service portal. Underpinning all of Clariant's technical services is CLARITY™, a cloud-based digital service portal developed by Clariant company Navigance. CLARITY gives customers 24/7 access to real-time catalyst performance data, advanced visualization and monitoring tools, and customizable key performance indicator (KPI) dashboards—all with end-to-end encrypted data sharing. The platform also connects users directly with Clariant's technical experts for immediate guidance and support. Since its launch, CLARITY has been adopted by > 250 plants and 380 active users across 28 countries, making it one of the most widely used digital service tools in the catalyst industry
Takeaways. Built on > 50 yrs of methanol synthesis expertise and the globally proven success of MegaMax™ 800, MegaMax™ 900 represents a true step change in catalyst technology, delivering up to 18% higher activity, longer catalyst lifetime, reduced energy consumption and a lower CO₂ footprint.
For operators of existing methanol plants, this translates into significant production gains and cost savings without any modifications to existing infrastructure, as demonstrated by MegaMax 900’s first commercial reference in the Americas with a production increase of 300 tpd of methanol.
MegaMax™ 900 equally powers the green methanol revolution, with successful operations already running at European Energy's eMethanol plant in Kasso, Denmark, and Shanghai Electric's biomass-to-green methanol plant in Taonan, China—proving its outstanding performance under the most challenging green feedstock conditions.
Backed by Clariant's world-class ACT technical service team, proprietary MegaZonE™ reactor loading technology and the real-time CLARITY™ digital service portal, MegaMax™ 900 is the complete solution for methanol producers looking to maximize efficiency today and transition confidently into a sustainable tomorrow.
